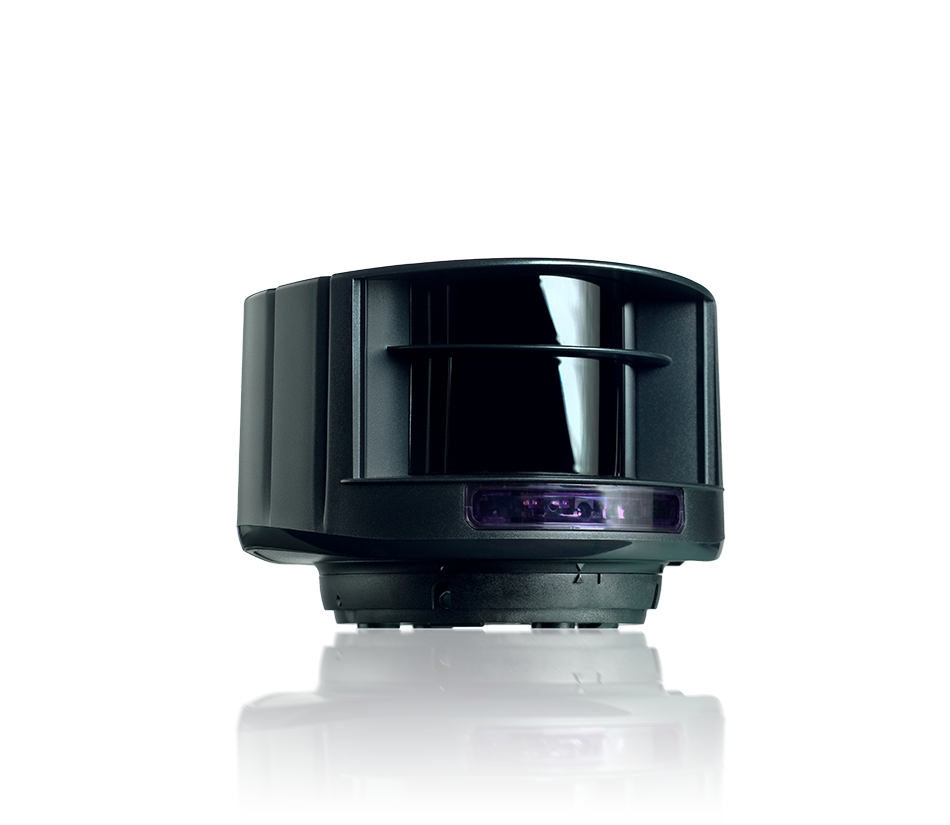

BEA LZR-I100/I110
| Technology | LASER scanner, time-of-flight measurement |

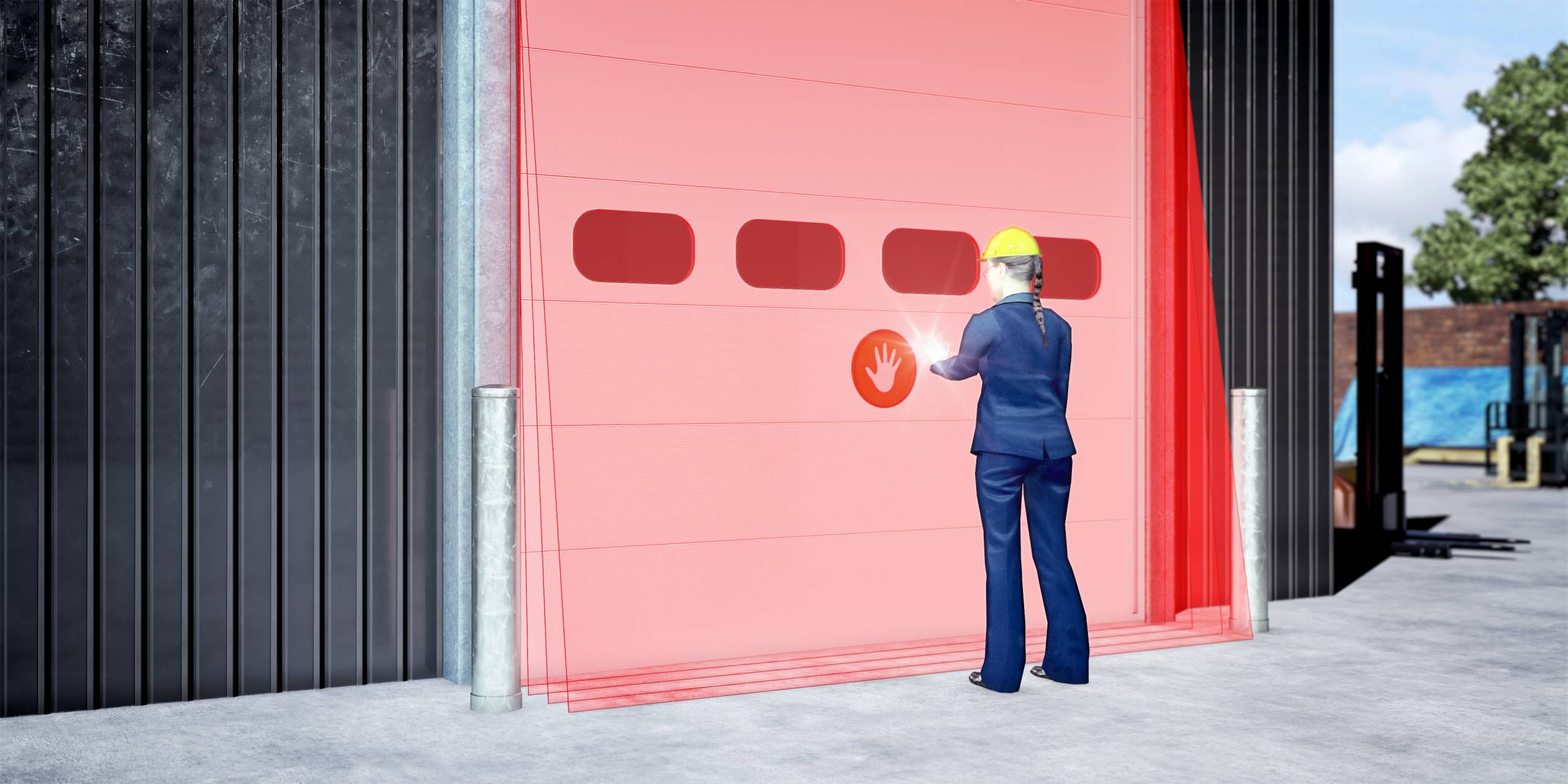

| Detection mode | Presence ( EN 12453 Type E ) |
| Max. detection range | LZR®-I100: 9.9 m × 9.9 m; LZR®-I110: 5 m × 5 m |
| Remission factor | > 2 % |
| Angular resolution | 0,3516° |
| Typ. min. object size | 2,1 cm @ 3 m / 3,5 cm @ 5 m / 7 cm @ 10 m (in proportion to object distance) |
| Testbody | 700 mm × 300 mm × 200 mm (testbody A according to EN 12445) |
| Emission characteristics | IR LASER: Wavelength 905 nm; max. output pulse power 75 W; Class 1 Red visible LASER: Wavelength 650 nm; max. output CW power 3 mW; Class 3R |
| Supply voltage | 10-35V DC @ sensor terminal |
| Power consumption | < 5 W |
| Response time | Typ. 20 ms; max. 80 ms |
| Output Max. switching voltage Max. switching current | 2 electronic relays ( galvanic isolation - polarity free ) 35V DC / 24V AC 80 mA (resistive) |
| LED-signals | 1 blue LED: power-on status 1 orange LED: error status 2 bi-coloured LED: detection/output status |
| Dimensions | 125 mm (L) × 93 mm (D) × 70 mm (H) ( mounting bracket + 14 mm ) |
| Material | PC/ASA |
| Colour | Black / White |
| Rotation angles on bracket | -5° to +5° ( lockable ) |
| Tilt angles on bracket | -3° to +3° |
| Protection degree | IP65 |
| Temperature range | -30 °C to +60 °C if powered |
| Humidity | 0-95 % non-condensing |
| Vibrations | < 2 G |
| Norm conformity | This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information. |
