The LZR®-FLATSCAN GO is designed to secure the moving leaves of swing doors. The stability and precision of the LASER technology allows it to be installed in challenging environments, where floor variations could cause unwanted detections with infrared sensors.

Compact design

The LZR®-FLATSCAN GO can be used on swing doors, up to 2.5 m high. Thanks to its compact design (8.5 cm × 14.2 cm) it can be stocked and stored easily.

Independent of floor and surroundings

Nothing worse than coming back to an installation because snow has accumulated or the weather conditions changed. Thanks to the LASER technology and its great stability of detection over time, the LZR®-FLATSCAN GO easily adapts to changing weather conditions and different types of floors (slatted floors, absorbent…).

Laser safety field

The leaf is covered by the laser safety field. Thanks to its reduced grey zone of only 10 cm, it offers a covering from top to bottom. Note that extra safety measures are mandatory to protect the hinge area to comply with EN16005.

Fast & intuitive installation

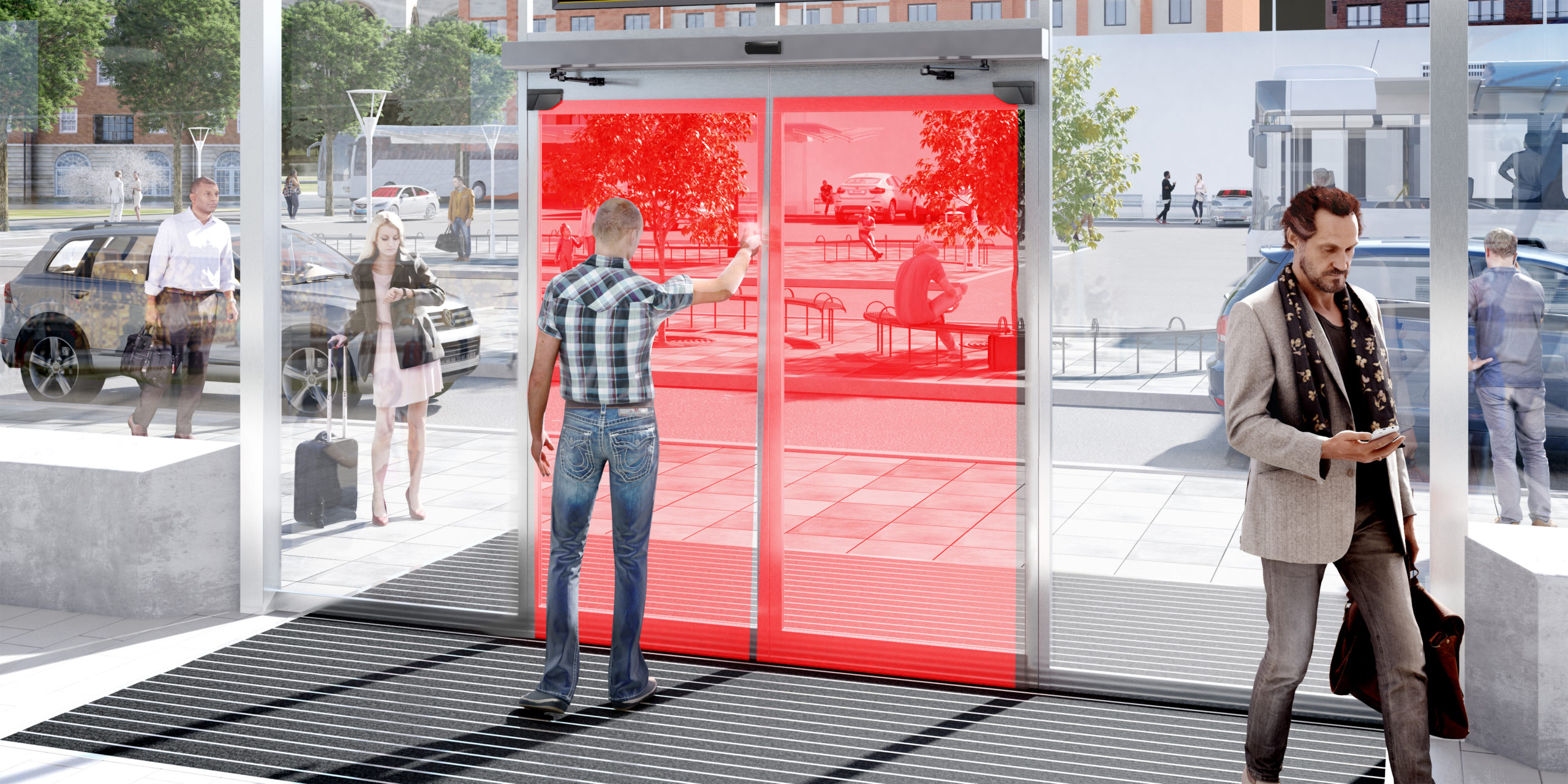

The width of the detection field of the sensor is defined by a simple hand movement, which leads to installation time savings. Fast and easy handling to get the safety on your door.

TechnologyLASER scanner, time-of-flight measurement

Max. Detection rangemax. 2,50 m (height) and 2,50 m (width) with reflectivity of 2%
Field of view
90°
Angular resolution

1.3°

Typ. min. object size (door wing protection)

≤ 10 cm
Testbody700 mm × 300 mm × 200 mm (testbody CA according to EN 16005 & DIN 18650)

Optical charateristics (IEC/EN 0825-1:2014)IR LASER: wavelength 905 nm; output power < 0.1 mW; Class 1

Supply voltage

12 - 24 V DC ± 15 %
Power consumption

≤ 2 W

Response time


max. 50 ms
Output
Max. switching voltage
Max. switching current		2 electronic relays (galvanic isolation - polarity free)

30V AC / 42V DC

100 mA
LED-signals

1 bi-coloured LED: detection/output status

Dimensions146 mm (L) × 85 mm (H) × 32 mm (D) (mounting base + 7 mm)
Material - Colour

PC/ASA - Black

Tilt angles

+2° to +10° (without mounting bracket)

Protection degree

IP54 (EN 60529)

Temperature range

-30°C to +60°C if powered

Humidity

0-95 % non-condensing

Vibrations< 2 G

Norm conformity

EN 12978; EN ISO 13849-1 Pl “d”/ CAT2; EN 16005 (testbody CA); EN 61508 SIL2
Icon
Icon

    LZR®-FLATSCAN RETROFIT INTERFACE

    Retrofit accessory the FLATSCAN

    LZR®-FLATSCAN PROTECTIVE COVER

    Protective cover for the FLATSCAN

    GDA

    Glass door accessory

    BEA Remote

    BEA REMOTE CONTROL

    Universal remote control for the adjustments of BEA sensors.
