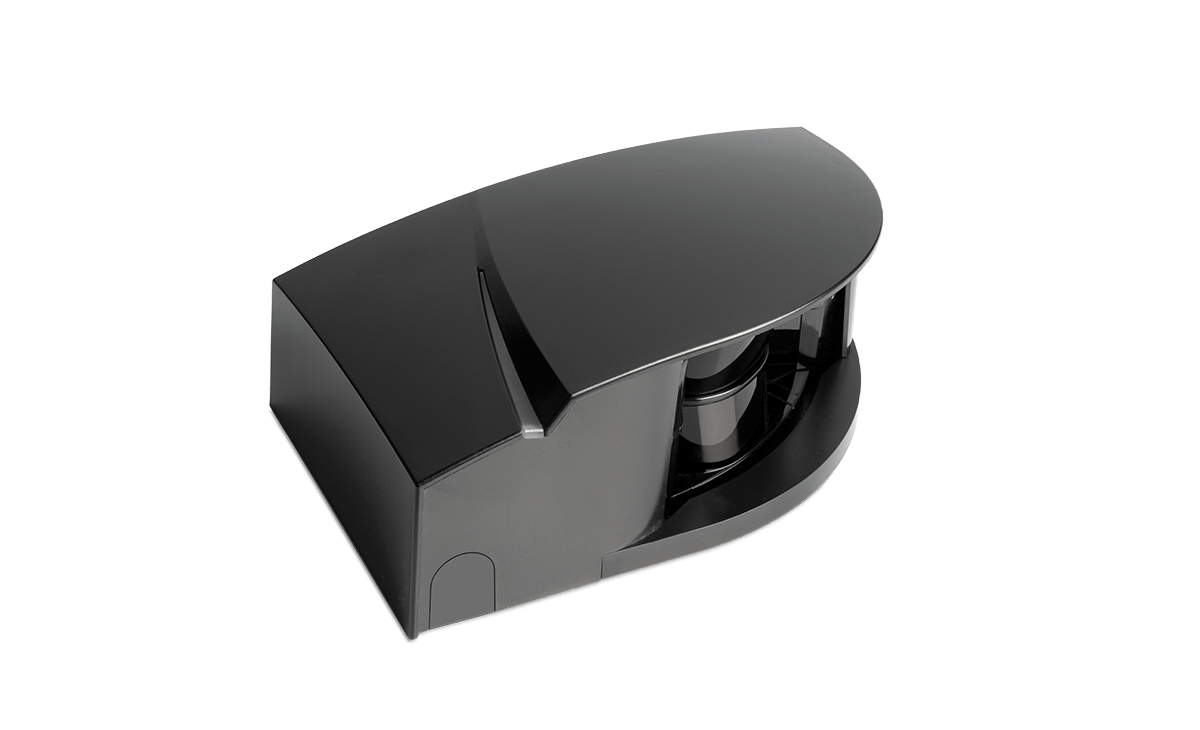

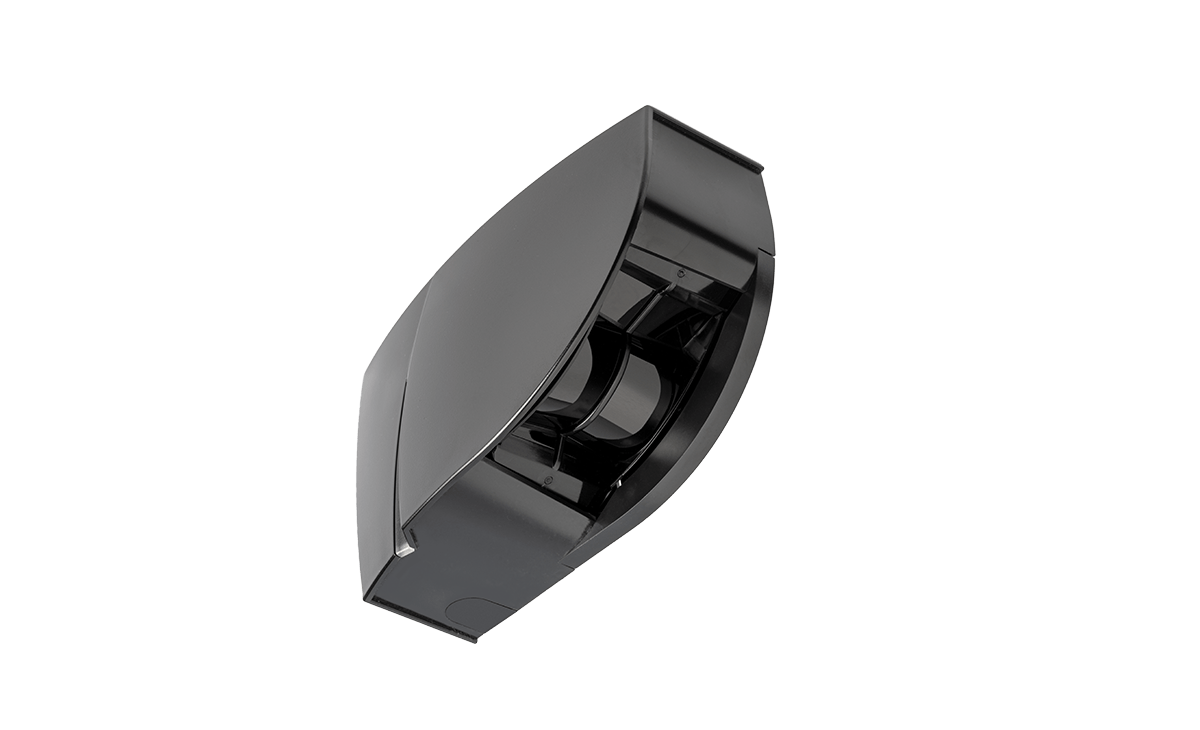

The LZR®-FLATSCAN 3D SW is a safety sensor designed for swing doors. Using laser time-of-flight technology, its volumetric detection field covers the complete opening area of the door, guaranteeing more comfort and safety to the users. Completely touchless. It prevents any contact with the user by avoiding sudden movements of door leaves. The coverage of the hinge area and the leading edge area is increased to avoid any risk of contact.

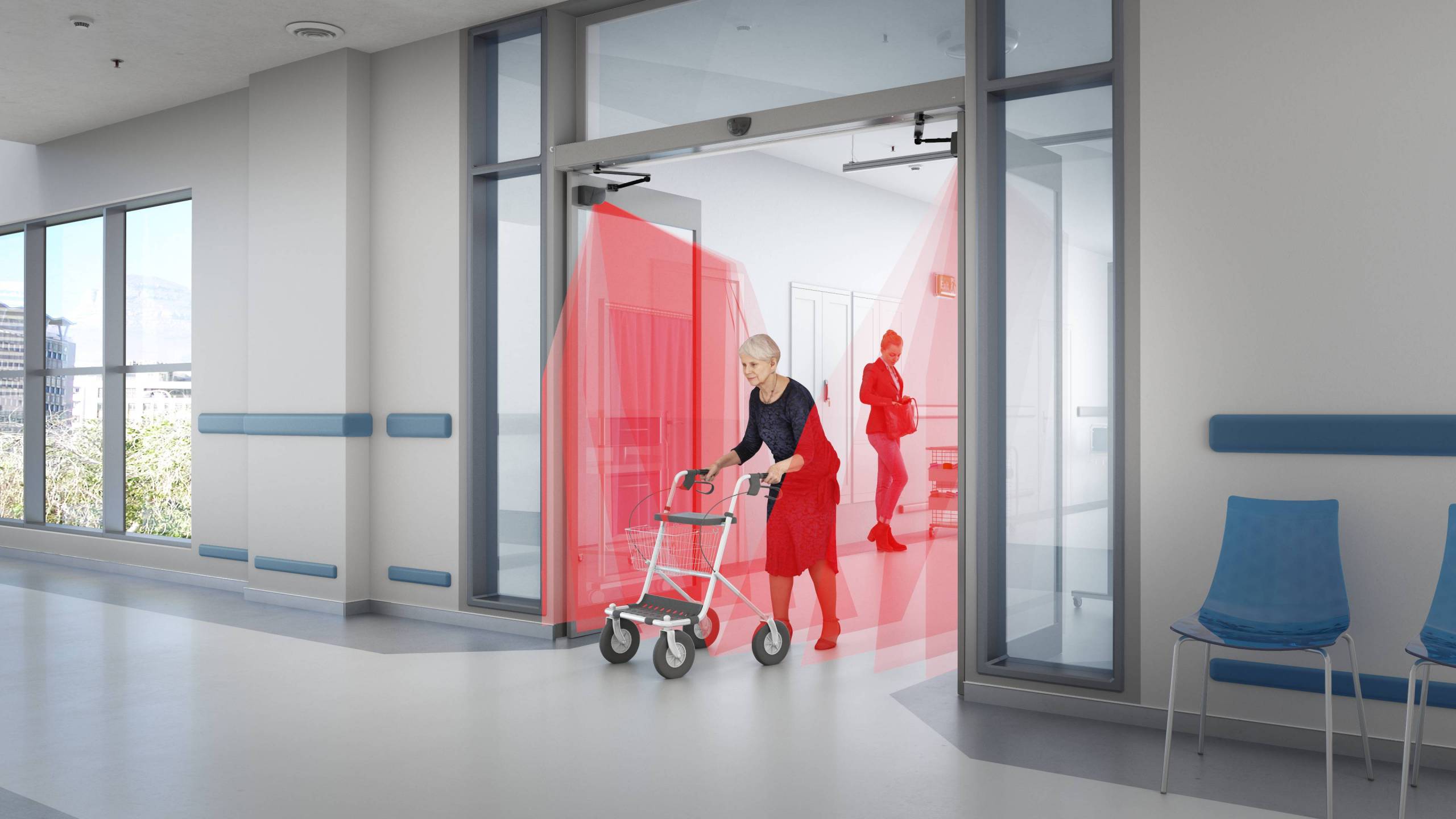

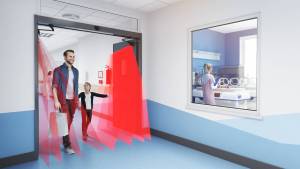

If a person or an object is present in the pathway, the door does not make any sudden movements thanks to the 4 laser curtains. Any risk of contact with the door is prevented whatever type of swing door.

The high resolution volumetric curtains of the LZR®-FLATSCAN 3D SW detect fingers and bodies in the entire defined detection area. The hinge area and the leading edge are secured.

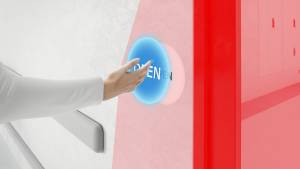

Thanks to a third output, the LZR®-FLATSCAN 3D SW also has an activation function, ensuring hygienic and on demand opening of the door. You can choose between creating up to 2 push buttons or using the curtains to activate the door, without the inconvenience of wiring new switches.

The LZR®-FLATSCAN 3D SW offers a hygienic safety solution by avoiding the use of mechanical finger protection.
No maintenance and cleaning is required to fight the spread of bacterias.

BEA FLATSCAN 3D SW

Technology
LASER scanner, time-of-flight measurement
Detection mode
Presence
Max. detection range
4m (diagonal) with reflectivity of 2% (i.e. : at W = 1.5m -> max. H = 3.7m)
Opening angle
Door wing safety : 80° / Hinge area safety : 20°
Angular resolution
Curtain 1 : 0.2° / Curtain 2 : 1° / Curtain 3 : 1.7° / Curtain 4 : 2.5°
Typ. min. object size
2cm @ 4m in curtain C1
Testbody
700 mm × 300 mm × 200 mm (testbody CA according to EN16005 & DIN18650)
Emission characteristics
Wavelength 905 nm; max. output pulse power
IR LASER
25 W; Class 1
Supply voltage
12-24V DC ± 15%
Power consumption
≤ 2 W
Response time
Typ. <120 ms / Max. 220 ms (curtain 2)
Output
3 electronic relays (galvanic isolation - polarity free)
Max. switching voltage
42 V AC/DC
Max. switching current
100 mA
LED-signals
1 RGB LED : detection/output status
Dimensions
145 mm (L) × 88 mm (H) × 60 mm (D) ( mounting base + 7 mm )
Material - Colour
PC/ASA - Black - Aluminium - White
Tilt angles
0° to +5° (without mounting base)
Protection degree
IP44 (EN 60529)
Temperature range
-25°C to +60°C
Humidity
0-95% non-condensing
Vibrations
< 2 G
Norm conformity
This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information.
