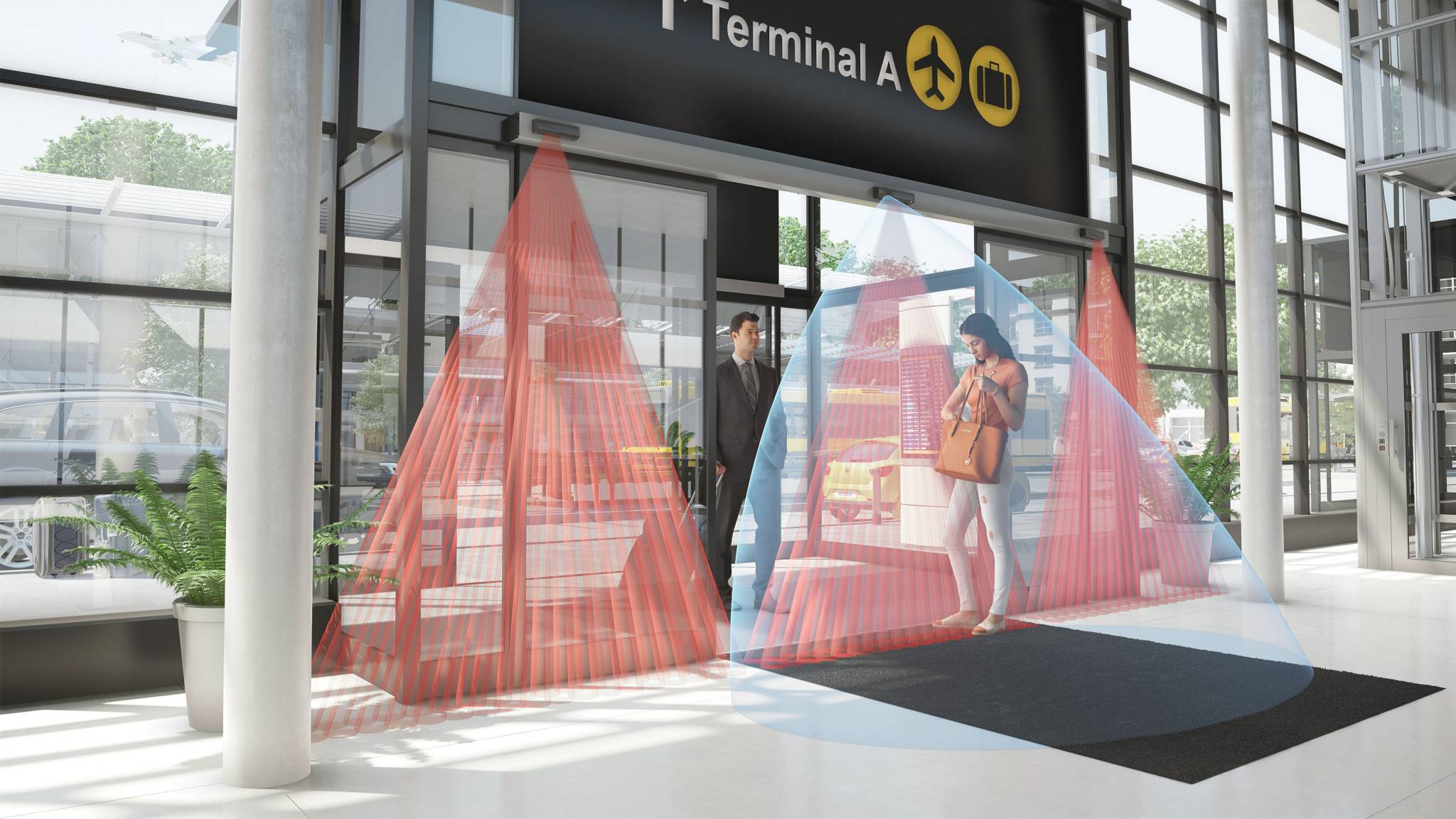

IXIO-S is an active infrared safety sensor. The tridimensional area of its infrared curtain protects the users from any contact with the doors. Adjustment is made easier with an LCD screen offering 10 different widths of curtains, to cover the full travel area of the door. The IXIO-S range can be combined with the IXIO-D range to ensure the side screen safety of sliding doors.

Easy configuration of detection field

10 possible widths of IR curtains, for optimum coverage of of IR curtains, for optimum coverage of the door opening.

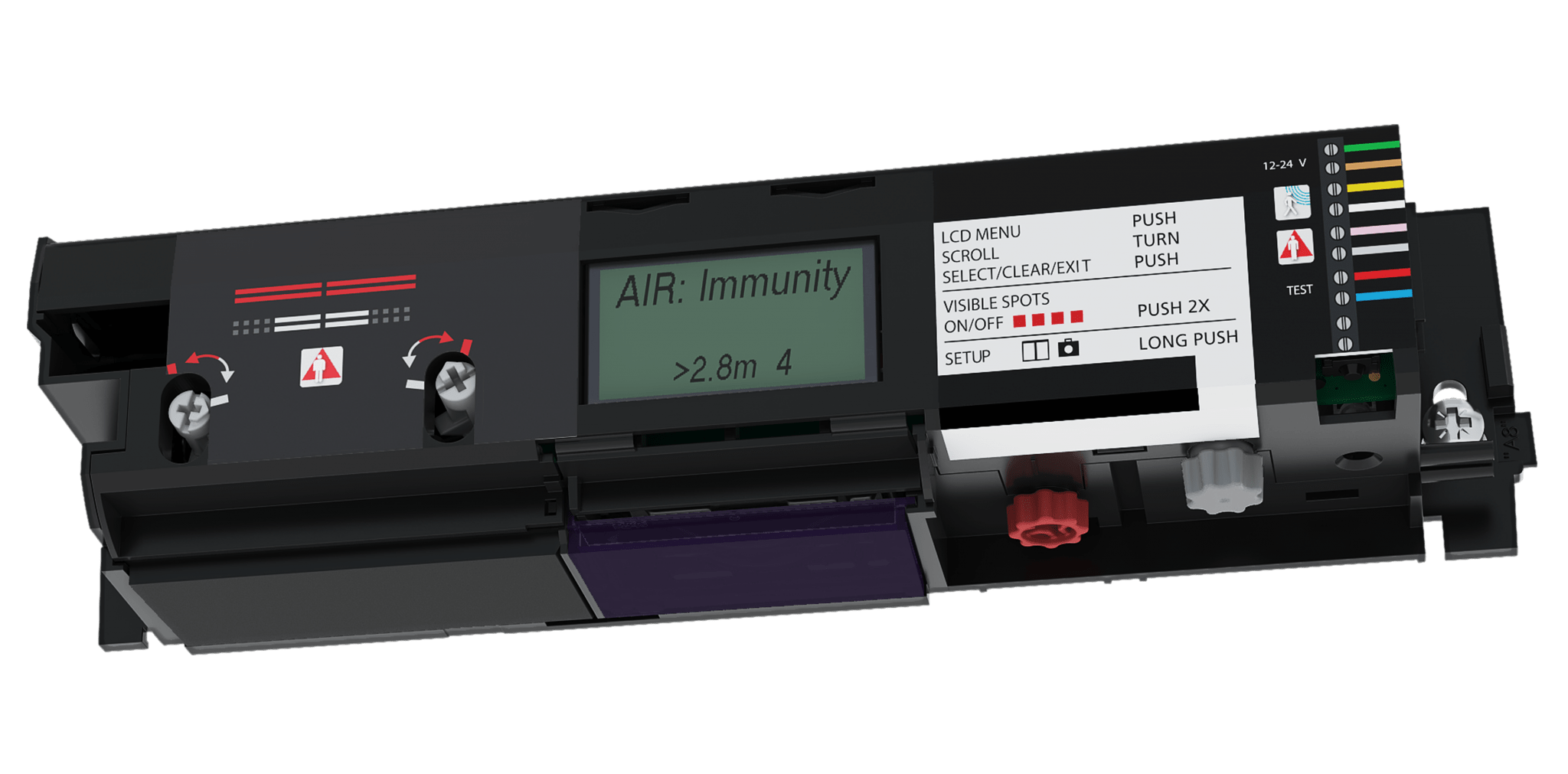

Intuitive configuration

Intuitive configuration with with an LCD screen displaying texts and symbols (LCD graphics).

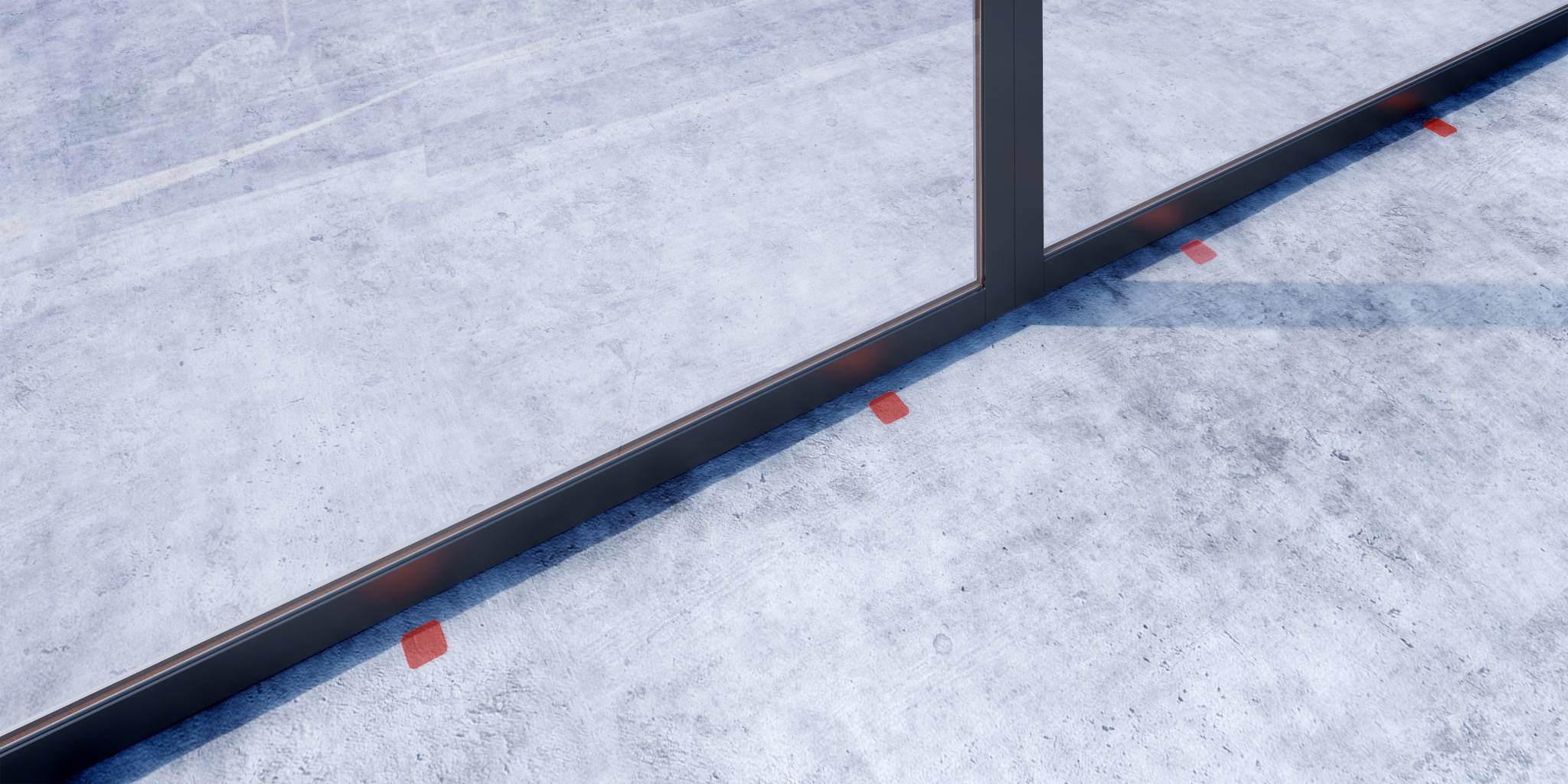

Visual aids

4 red spotlights visible on the floor to adjust the angle of the failsafe curtain.

Stable & reliable

A 32-bit microprocessor optimises the processing of information coming from the environment, ensuring a stable performance throughout the year. 48 high-density infrared spotlights from 2 curtains protect users from any contact with the doors.

BEA IXIO-ST

Supply voltage

12 V - 24 V AC +/-10% ; 12 V - 30 V DC +/-10% (to be operated from SELV compatible power supplies only)
consumption< 2.5 W

Mounting height

2 m to 3.5 m (local regulations may have an impact on the acceptable mounting height)
Temperature range
-25°C to +55°C; 0-95% relative humidity, non condensing
Degree of protection

IP54

Noise

< 70 dB

Expected lifetime

20 years

Detection mode

Presence

Typical response time

< 200 ms (max. 500 ms)

TechnologyActive infrared with background analysis

Spot5 cm x 5 cm (typ)

Number of spots

max. 24 per curtain

Number of curtains

2
Output

Solid-state-relay (potential and polarity free)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
Holdtime: 0.3 to 1 s
Test input:

Sensitivity: Low: < 1 V; High: > 10 V (max. 30 V)
Response time on test request: typical: < 5 ms
Norm conformity:

This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information.
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

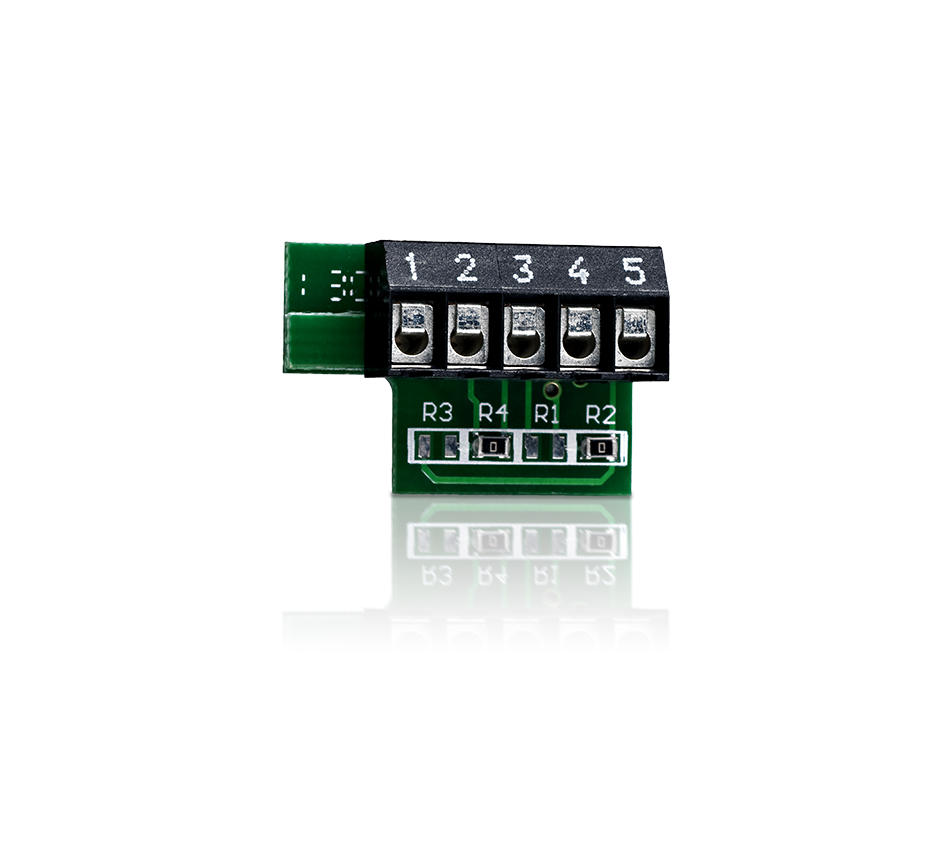

    IXIO/VIO/4SAFE INTERFACE

    Interface for the IXIO/VIO/4SAFE

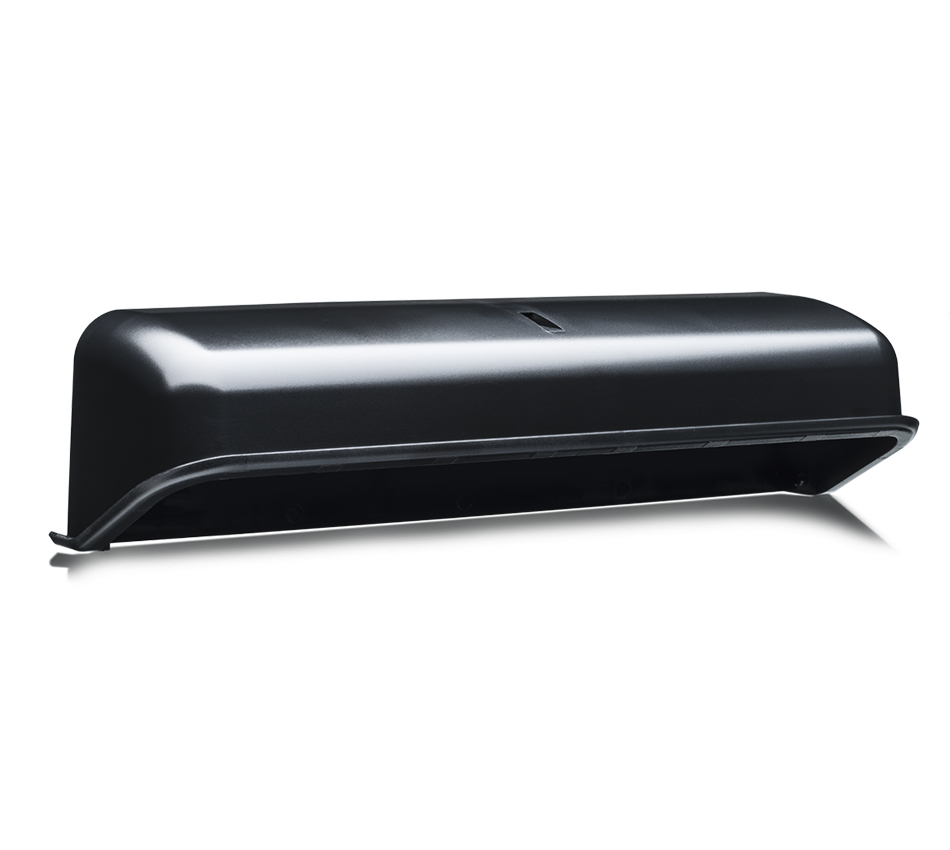

    IXIO/VIO RA

    Rain accessory for the IXIO & VIO range

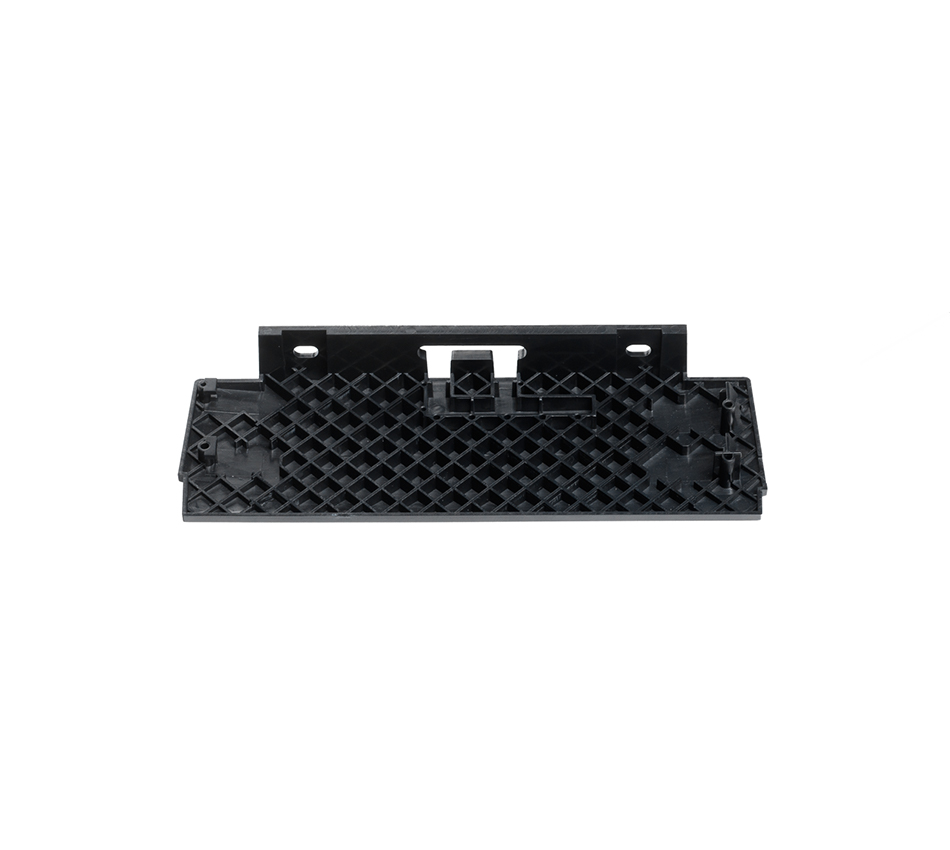

    IXIO-S BA

    Bracket Accessory for the IXIO-ST

    IXIO-S CA

    Ceiling accessory for the IXIO-ST

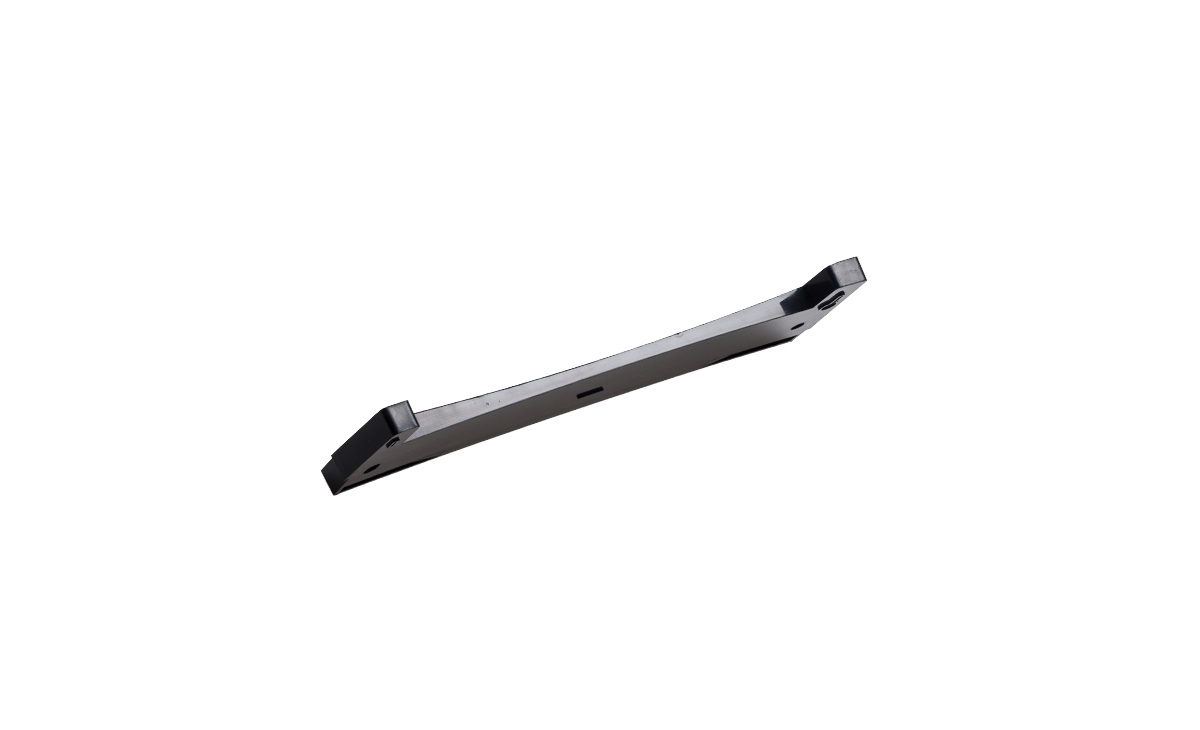

    IXIO-S CDA

    Curved door accessory for the IXIO-ST

    BEA Spotfinder

    SPOTFINDER

    Tool for visualising the exact position of infrared curtains.

    BEA Remote

    BEA REMOTE CONTROL

    Universal remote control for the adjustments of BEA sensors.
