The FALCON is a unidirectional motion sensor optimizing the performance of automatic doors. The FALCON detects every type of target and can filter people. Detecting vehicles only allows to reduce the door closing cycle by rejecting cross-traffic. Mounted at 7 m the FALCON has a detection field of 4 x 5 m. At 3.5 m, the FALCON XL detects in an area of 4 x 2 m.

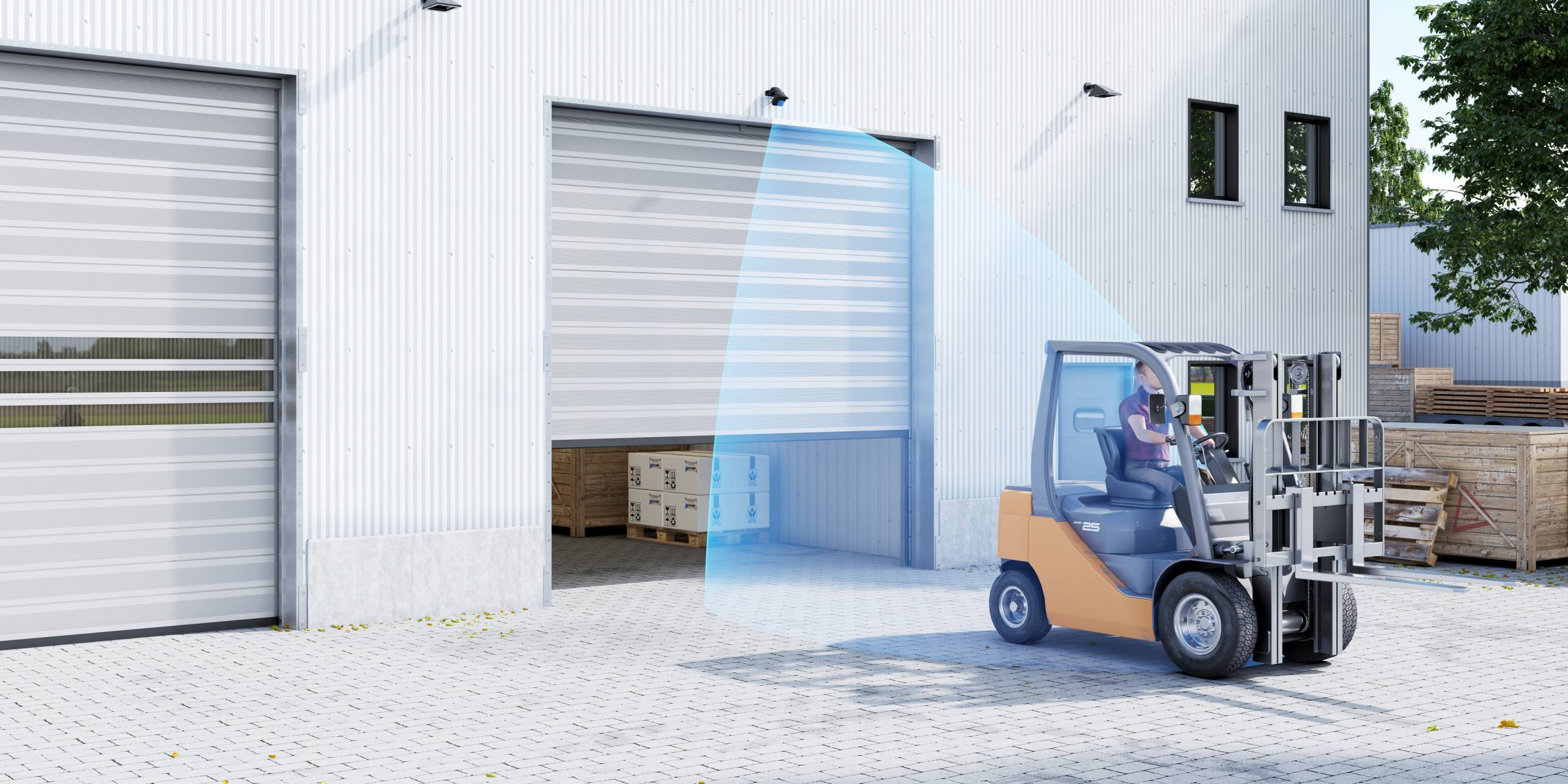

Energy-saving

Unidirectional motion detection for an optimum door closing cycle generating energy savings.

People filter

Possibility of filtering people and detecting vehicles only.

Cross-traffic filter

Possibility of filtering cross-traffic to eliminate unwanted detection.

Plug & play

Adjustment of basic functions with push buttons or remote control.

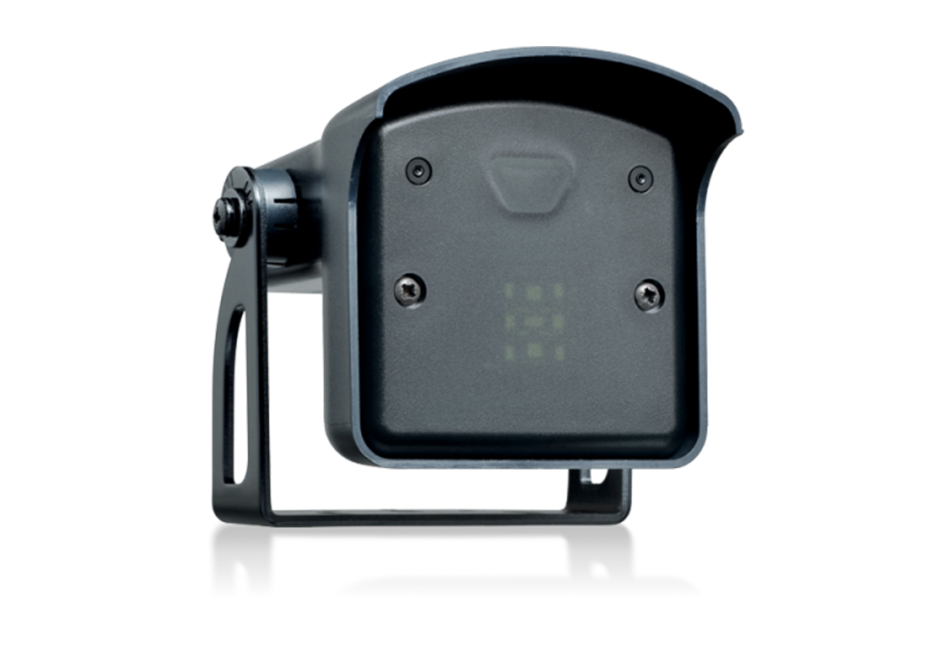

BEA FALCON

Technology:

microwave doppler radar

Transmitter frequency:

24.150 GHz

Transmitter radiated power:

< 20 dBm EIRP

Transmitter power density:

< 5 mW/cm²

Detection mode:

motion

Detection zone:


FALCON: 4 x 5 m ;
FALCON XL: 4 x 2 m (typical at 30° and fi eld size 9)
Min. detection speed:

5 cm/s

Supply voltage:

12V to 24V AC ±10%; 12V to 24V DC +30% / -10%

Mains frequency:

50 to 60 Hz

Max power consumption:

< 2 W

Output:

relay (free of potential change-over contact)

Max. contact voltage:

42V AC/DC

Max. contact current:

1A (resistive)

Max. switching power:

30W (DC) / 60VA (AC)

LED-signal:

red: detection state, parameter indication; green: value indication

Mounting height:


FALCON: 3.5 m - 7m;
FALCON XL: 2 m - 3.5 m
Degree of protection:

IP65

Temperature range:

from -30 °C to + 60 °C

Dimensions:

127 mm (L) x 102 mm (H) x 96 mm (W)

Tilt angles:

0° to 180° vertical

Materials:

ABS and polycarbonate

Weight:

400 g

Cable length:

10 or 15 m

Norm conformity:


This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information.

FALCON

9-patch antenna for mounting till 7 m

FALCON XL

3-patch antenna for mounting till 3.5 m
